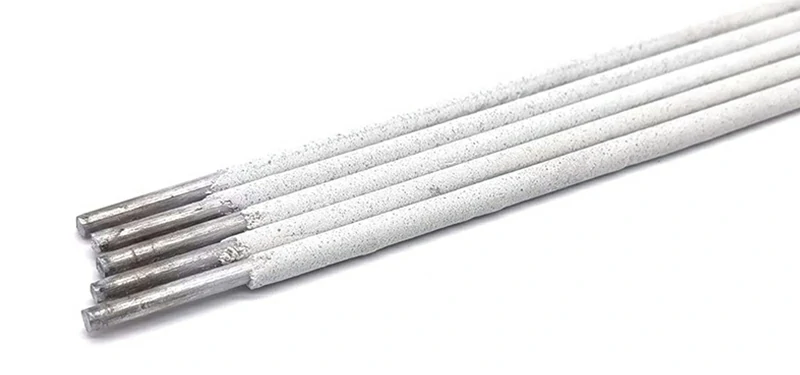

Thermanit MTS 616 TIG Rods Importer, Stockist & Supplier Worldwide
Shanti Metal Supply Corporation (SMSC) is an importer and stockist of Thermanit MTS 616 TIG Rods, supporting industrial welding consumable requirements across Gulf countries, Indonesia, Malaysia and other international markets. Thermanit MTS 616 is a creep-resistant TIG rod / wire designed for manual and automatic gas tungsten arc welding of compatible high-temperature creep-strength-enhanced ferritic steels.
Thermanit MTS 616 is classified under EN ISO 21952-A as W ZCrMoWVNb 9 0.5 1.5 TIG Rods and under AWS A5.28 / SFA-5.28 as ER90S-B92 TIG Rods. It is particularly associated with P92 / T92 steels used in thermal power applications. The weld metal develops a fully tempered martensitic microstructure after suitable post-weld heat treatment and is designed to provide creep resistance and ductility in high-temperature service.
Thermanit MTS 616 TIG Rods – Product Overview
| Product | Thermanit MTS 616 |
|---|---|
| Product Type | TIG Rod / TIG Wire |
| Welding Process | GTAW / TIG |
| EN ISO Classification | EN ISO 21952-A, W ZCrMoWVNb 9 0.5 1.5 TIG Rods |
| AWS Classification | AWS A5.28 / SFA-5.28, ER90S-B92 TIG Rods |
| Application | Creep-resistant and high-temperature welding |
| Base Material | P92 / T92 and compatible creep-resistant ferritic steels |
| Current / Polarity | DC (-) |
| Shielding Gas | I1 according to EN ISO 14175 |
| Typical Service Temperature | Up to approximately 650°C |
| Approvals | TÜV (09290), CE |
Characteristics of Thermanit MTS 616 TIG Rods
Thermanit MTS 616 is a medium-alloyed, creep-resistant TIG rod / wire developed for demanding high-temperature welding applications. It is specifically associated with P92 / T92 creep-strength-enhanced ferritic steels used in thermal power equipment.
- Suitable for manual and automatic GTAW / TIG welding.
- Designed for joining and surfacing applications involving compatible high-temperature creep-resistant steels.
- Produces a fully tempered martensitic weld-metal structure after appropriate post-weld heat treatment.
- Provides a combination of creep resistance and ductility in the specified post-weld heat-treated condition.
- Suitable for ASTM P92 / T92 tube, pipe, plate and forging applications.
- The controlled manganese and nickel content supports a high transformation temperature for appropriate heat-treatment procedures.
- Suitable for demanding thermal power and high-temperature industrial welding applications.
Chemical Composition of Thermanit MTS 616 TIG Rods
The following values represent typical analysis reported for Thermanit MTS 616 TIG rod / wire. Actual product chemistry should be confirmed against the applicable mill certificate and current manufacturer documentation.
| Element | Typical Composition (wt. %) |
|---|---|
| Carbon (C) | 0.10 |
| Silicon (Si) | 0.25 |
| Manganese (Mn) | 0.50 |
| Chromium (Cr) | 8.5 |
| Nickel (Ni) | 0.50 |
| Molybdenum (Mo) | 0.40 |
| Tungsten (W) | 1.60 |
| Vanadium (V) | 0.20 |
| Niobium (Nb) | 0.06 |
| Nitrogen (N) | 0.04 |
Mechanical Properties of Thermanit MTS 616 TIG Rods
The manufacturer's technical information provides the following typical all-weld-metal properties after post-weld heat treatment at 760°C for at least 2 hours.
| Property | Typical Value | Minimum Value |
|---|---|---|
| Yield Strength Rp0.2 | 560 MPa | ≥ 390 MPa |
| Tensile Strength Rm | 800 MPa | ≥ 720 MPa |
| Elongation A | 19% | ≥ 15% |
| Impact Energy ISO-V at 20°C | 145 J | ≥ 41 J |
| Heat Treatment | 760°C / 2 hours, tempered | |
| Shielding Gas | I1 | |
Mechanical properties can vary with welding procedure, heat input, base material, post-weld heat treatment and test conditions. The applicable manufacturer's product documentation and project WPS/PQR should be used for production welding.
Base Materials for Thermanit MTS 616 TIG Rods
Thermanit MTS 616 is primarily associated with high-temperature creep-resistant ferritic steels of the P92 / T92 family. The manufacturer identifies compatible parent materials used in thermal power applications.
- 1.4901 – X10CrWMoVNb9-2
- NF 616
- ASTM A213 Grade T92
- ASTM A335 Grade P92
- Compatible P92 creep-strength-enhanced ferritic steels
Filler-metal selection should always be based on the exact parent material, component design, welding procedure, service conditions, heat-treatment requirements and applicable engineering code.
Applications of Thermanit MTS 616 TIG Rods
Thermanit MTS 616 TIG Rods are used for suitable joining and surfacing applications involving high-temperature creep-resistant ferritic steels. The product is particularly relevant to thermal power equipment manufactured from P92 / T92 steels.
- Thermal power plant equipment
- Boiler components
- Superheater and reheater components
- High-temperature steam piping
- P92 / T92 tube welding
- P92 / T92 pipe welding
- P92 / T92 plate fabrication
- P92 / T92 forging applications
- High-temperature repair and maintenance welding
- Joining and surfacing of compatible creep-resistant steels
Welding Parameters for Thermanit MTS 616 TIG Rods
| Parameter | Recommended / Reference Information |
|---|---|
| Welding Process | GTAW / TIG |
| Polarity | DC (-) |
| Shielding Gas | I1 according to EN ISO 14175 |
| Typical Shielding Gas | Argon |
| Preheat Temperature | 200–300°C |
| Interpass Temperature | 200–300°C |
| Cooling Before PWHT | Cool to approximately 100°C or below before PWHT |
| Post-Weld Heat Treatment | 760°C for at least 2 hours |
Preheat and interpass temperature should be controlled carefully during welding. The manufacturer's technical information specifies a preheat and interpass range of approximately 200–300°C and post-weld heat treatment at 760°C for at least 2 hours. The component should be cooled appropriately before PWHT according to the manufacturer's welding instructions.
Available Sizes of Thermanit MTS 616 TIG Rods
| Diameter | Length / Form |
|---|---|
| 0.8 mm | Wire / spool |
| 1.0 mm | Wire / spool |
| 1.6 mm | TIG rod |
| 2.0 mm | 1000 mm |
| 2.4 mm | 1000 mm |
| 3.2 mm | 1000 mm |
Available diameters and product forms can vary according to the current manufacturer's product range and stock position. Customers should provide the required diameter, quantity and delivery destination when requesting availability from SMSC.
Thermanit MTS 616 TIG Rods Importer & Stockist – SMSC
Shanti Metal Supply Corporation (SMSC) supplies Thermanit MTS 616 TIG Rods for industrial welding, thermal power, fabrication and maintenance requirements. As an importer and stockist, SMSC supports customers looking for specification-based welding consumables for demanding high-temperature applications.
SMSC supports supply enquiries across the Gulf countries, including UAE, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain. International industrial enquiries from Indonesia and Malaysia are also supported, subject to product availability, required quantity, specifications and applicable export requirements.
Customers can contact SMSC for Thermanit MTS 616 requirements based on required diameter, quantity, classification, application and delivery destination.
Thermanit MTS 616 TIG Rod Supplier for Gulf Countries
SMSC supports industrial procurement enquiries for Thermanit MTS 616 TIG Rods from customers, contractors and project procurement teams across the Gulf region.
- Thermanit MTS 616 TIG Rod Supplier UAE
- Thermanit MTS 616 TIG Rod Supplier Saudi Arabia
- Thermanit MTS 616 TIG Rod Supplier Qatar
- Thermanit MTS 616 TIG Rod Supplier Oman
- Thermanit MTS 616 TIG Rod Supplier Kuwait
- Thermanit MTS 616 TIG Rod Supplier Bahrain
Thermanit MTS 616 TIG Rod Supplier for Indonesia & Malaysia
SMSC also supports international industrial enquiries from Indonesia and Malaysia for Thermanit MTS 616 TIG Rods. Supply is subject to product availability, required specifications, quantity, documentation and applicable international delivery requirements.
Why Choose SMSC for Thermanit MTS 616 TIG Rods?
- Importer and Stockist
- Industrial Welding Consumable Supply
- Specification-Based Product Support
- Supply Support for Gulf Countries
- International Market Support
- Support for Indonesia and Malaysia
- Product Identification According to Required Classification
- Support for Industrial and Project Procurement
- Bulk Requirement Enquiries
- Worldwide Export Supply Support
How to Order Thermanit MTS 616 TIG Rods
When enquiring for Thermanit MTS 616 TIG Rods, customers should provide the product name, required diameter, quantity, application, base-material information and delivery destination wherever available.
- Confirm the required Thermanit MTS 616 product.
- Confirm the required AWS or EN ISO classification.
- Specify the required rod diameter and quantity.
- Provide the base material and welding application when relevant.
- Provide the required delivery destination.
- Request availability and commercial quotation from SMSC.
Frequently Asked Questions – Thermanit MTS 616 TIG Rods
What is Thermanit MTS 616?
Thermanit MTS 616 is a creep-resistant TIG rod / wire designed for manual and automatic GTAW / TIG welding of compatible high-temperature creep-strength-enhanced ferritic steels, particularly P92 / T92 materials used in thermal power applications.
What is the AWS classification of Thermanit MTS 616?
Thermanit MTS 616 is classified under AWS A5.28 / SFA-5.28 as ER90S-B92.
What is the EN ISO classification of Thermanit MTS 616?
The EN ISO classification of Thermanit MTS 616 is EN ISO 21952-A, W ZCrMoWVNb 9 0.5 1.5.
Which base materials are suitable for Thermanit MTS 616?
Thermanit MTS 616 is particularly associated with ASTM A213 Grade T92, ASTM A335 Grade P92, NF 616 and 1.4901 / X10CrWMoVNb9-2 and other compatible creep-resistant ferritic steels.
What welding process is used with Thermanit MTS 616?
Thermanit MTS 616 is a TIG rod / wire designed for gas tungsten arc welding (GTAW / TIG), including manual and automatic welding applications.
What shielding gas is used with Thermanit MTS 616 TIG Rods?
The manufacturer's operating data specifies shielding gas I1 according to EN ISO 14175. Argon is commonly used for TIG welding with this shielding-gas classification.
What is the typical chemical composition of Thermanit MTS 616?
Typical analysis includes approximately 0.10% carbon, 0.25% silicon, 0.50% manganese, 8.5% chromium, 0.50% nickel, 0.40% molybdenum, 1.60% tungsten, 0.20% vanadium, 0.06% niobium and 0.04% nitrogen.
What are the mechanical properties of Thermanit MTS 616 TIG Rods?
After the specified 760°C / 2-hour heat treatment, typical all-weld-metal properties include approximately 560 MPa yield strength, 800 MPa tensile strength, 19% elongation and 145 J impact energy at 20°C.
What preheat temperature is recommended for Thermanit MTS 616?
The manufacturer's technical information specifies controlling preheat and interpass temperature at approximately 200–300°C for the applicable welding procedure.
What is the recommended PWHT for Thermanit MTS 616?
The manufacturer's technical information specifies post-weld heat treatment at approximately 760°C for at least 2 hours for the stated application.
What is the service temperature of Thermanit MTS 616?
Thermanit MTS 616 is approved for long-term service at temperatures up to approximately 650°C for the specified application range.
Who supplies Thermanit MTS 616 TIG Rods for Gulf countries?
Shanti Metal Supply Corporation (SMSC) is an importer and stockist supporting industrial enquiries for Thermanit MTS 616 TIG Rods across Gulf countries and international markets.
Does SMSC supply Thermanit MTS 616 TIG Rods to Indonesia and Malaysia?
SMSC supports international industrial enquiries from Indonesia and Malaysia, subject to product availability, quantity, specifications and applicable supply requirements.
